Median Barrier Board A40323

From: $65.45

Highway and main road compliant Class 1W Reflective

Use drop down menu for quantities.

Median Barrier Board made from ABS plastic and featuring Class 1 Reflective stripes. Size is 25x2500x190. Legs sold separately.

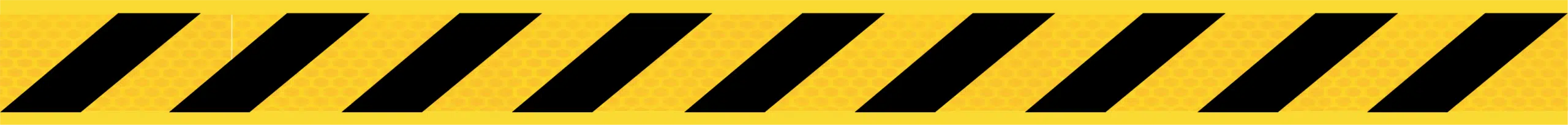

A Median Barrier Board (centre Lane) shows the bars sloping to the left both sides. This means that traffic coming from either direction will keep to the left. Indeed, these Median Boards (or Centre Lane barrier boards) have sloping bars, set for 2 way traffic. Consequently, no matter which way the board faces or is turned, it is correct. The direction of traffic travel is defined by the slope direction of the yellow bars. For instance, If the bar slopes from the right, downhill towards the left, Keep left of this Barrier. Likewise, a Barrier board seen with the bars sloping from the left, downwards to right, means keep right side of this board. This board is different to the Road Shoulder barrier Board. The picture shown here, shows keep left.

Barrier boards and their stands are classed as overweight and oversized items. Please ask for a quote. Shipping shown by our website, will be incorrect. You can ask for a quote HERE

Clear
    Reset Options

Description

Median Barrier Board

Median Barrier Board shows the bars sloping down to the left both sides. This means that Highway traffic coming from either direction will keep to the left. Indeed, these Centre Lane barrier boards have sloping bars, set for 2 way traffic. Consequently, no matter which way the board faces or is turned, it is correct. The direction of traffic travel is defined by the slope direction of the yellow bars. For instance, If the bar slopes from the right, downhill towards the left, Keep left of this Barrier. Likewise, a board seen with the bars sloping from the left, downwards to right, means keep right side of this board.

Size of Centre Lane Barrier Board

The Centre Lane Barrier is 2500mm long by 190mm high. Also, thickness is 25mm. Size and weight of this product means that Shipping costs will be different depending on destination. A quote will be required. You can contact us HERE. We can also quote on special large orders of Centre lane barriers.

Highway Compliant Class 1W Reflective

The Median Barrier Boards are classed for use on all roads and highways. Furthermore, The Barrier Boards are compliant for Freeways and Motorways Australia wide.

MUTCD traffic control information

Barrier boards shall be 150 mm to 200 mm in height and not more than 4 m in length. They should be mounted on trestles or fixed posts at about 1 m above the pavement. The colour combination used for barrier boards shall be alternate diagonal stripes of black and retroreflective yellow, terminating in yellow at each end. Barrier board designs for use in Queensland are given in TC9215 and TC9224. A Barrier Board shall not be placed parallel to the direction of traffic flow. Barrier boards so placed can become a spearing hazard if struck end on by an out-of-control vehicle. You can read the MUTCD Traffic control here: Traffic control MUTCD
