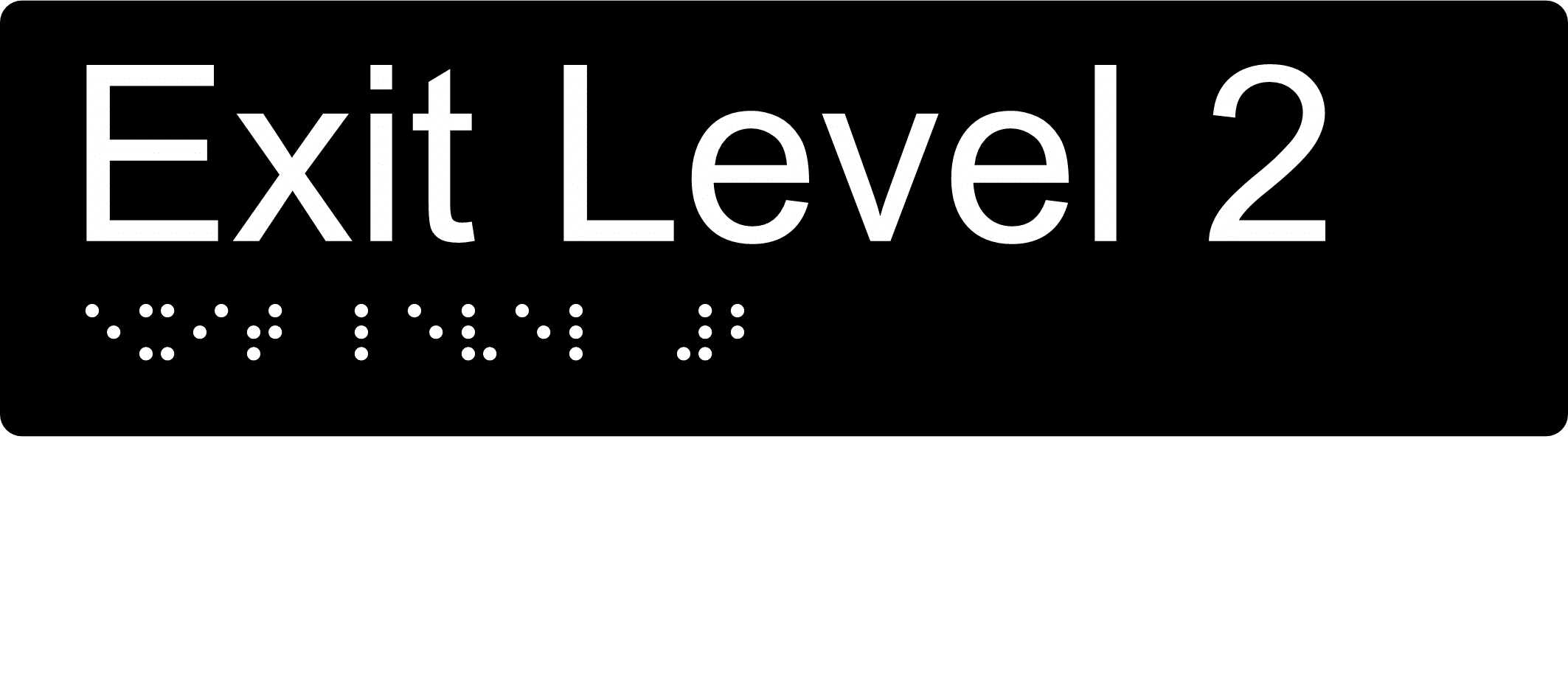

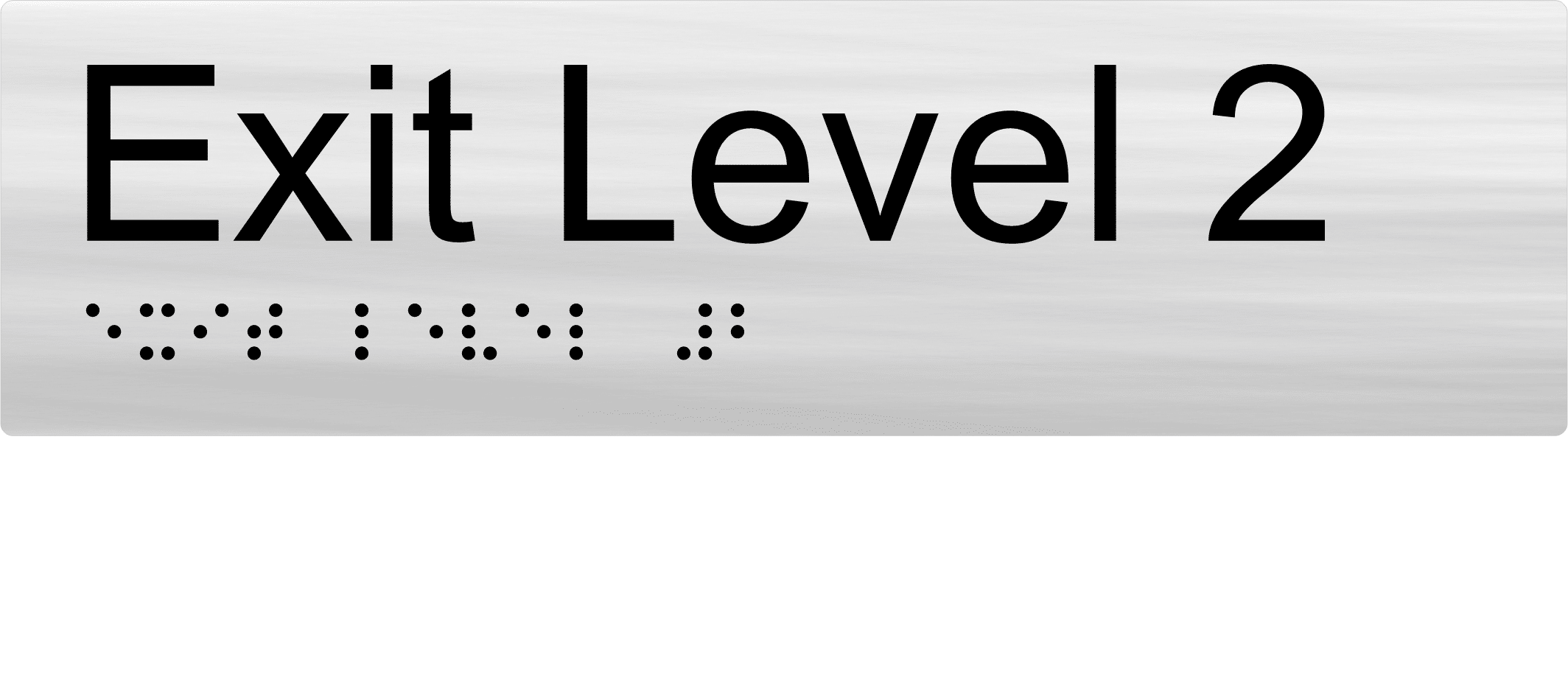

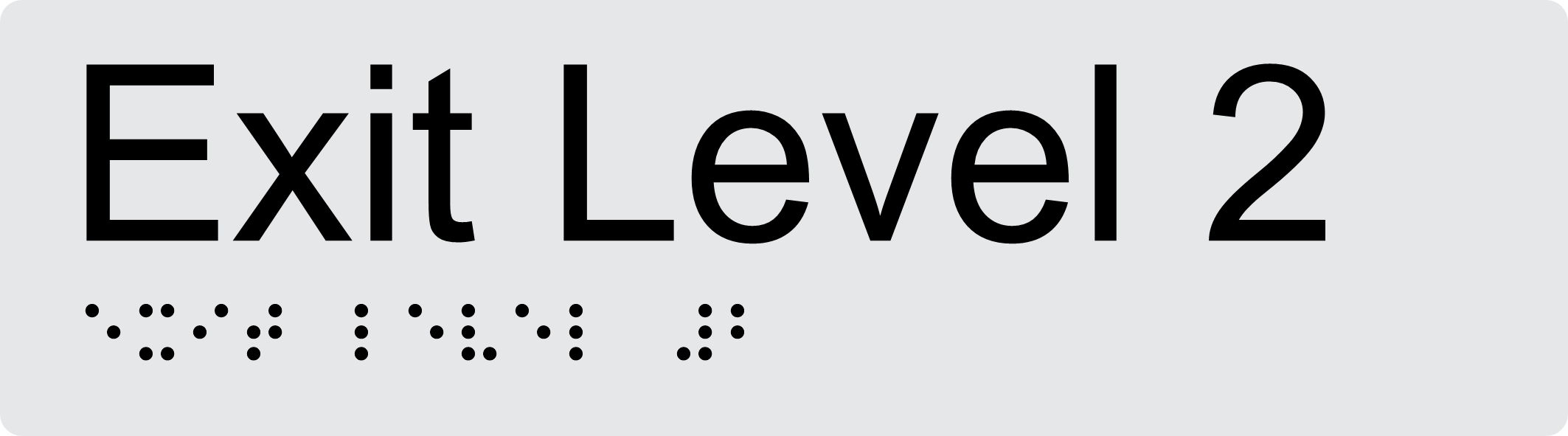

Exit Level 2 Braille Sign BTEX02

Images and designs are protected by copyright.
© National Safety Signs

Exit Level 2 Braille Sign BTEX02 - Image 2
Exit Level 2 Braille Sign BTEX02 - Image 3

Exit Level 2 Braille Sign BTEX02

From: $35.00

Exit Level 2 BTEX02

All braille signs are fully compliant with BCA 2011 Volume One, Section D3.6, of the Building Code of Australia and Australian Standard AS 1428.1

180mm x 50mm size – BTEX02

  • Silver-Black Fully Injection Moulded Plastic 3mm one single piece of PVC Plastic
  • Black Acrylic Matte Face 3mm, latest technology braille printing.
  • Anodised Aluminium 1mm Natural Clear Matte, latest technology braille printing.

Description

Exit Level 2 BTEX02

Braille and tactile components of a sign must be located not less than 1200 mm and not higher than 1600 mm above the floor or ground surface.

Signs with single lines of characters must have the line of tactile characters not less than 1250 mm and not higher than 1350 mm above the floor or ground surface.

Signs leading edge must be maximum of 300mm and minimum of 50mm from the architrave edge of the door handle edge.

  • Complies with Building Code of Australia (Section D3.6)
  • Complies with Design for Access and Mobility (AS1428.1-2011)
  • Complies with Public Information Standards (AS2899.1-1986)



Additional information

Select Item

Acrylic Black Matte 3mm, Anodised Aluminium 1mm, Injection Moulded Plastic Silver-Black
